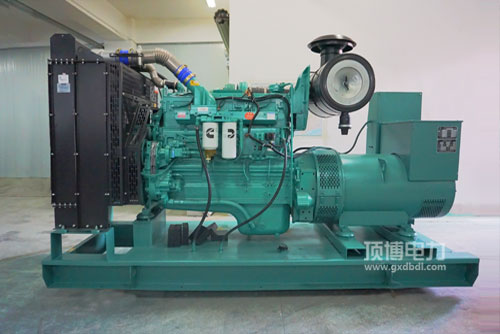

224-310KW广西顶博发电机组制造:康明斯发电用发动机可靠性高：高强度合金铸造缸体、可锻铸铁(FCD) 活塞，刚性更好，降低振动和噪声，提高了发动机适应更高的爆发压力。

High reliability: intensified alloy casting cylinder and Ferrous Cast Ductile (FCD) piston provide engine a better rigidity performance and lower vibration & noise, and also make the engine adapt to higher explosion pressure.

康明斯发电量用打火机汽油资金性好: 比较好的的汽油调节模式的，独特的的STC、ESTC 等级分类调节模式的，特色定制的活塞环上边引燃室，超高压压喷射汽油，彻底的雾化吸入，引燃彻底的。

Good fuel economy: Advanced fuel control system, unique STC, ESTC step control system, specilly-designed piston topchamber and high pressure fuel injection lead to an excellent fuel consumption rate and emission performance of engine.

康明斯风能发电用汽车发思想瞬态的性能优质: 圆满的汽车发思想整体结构构思，积极配合康明斯鲜明的EFC程序，有效控制要求高，初始化失败的时间快。

Excellent transient performance: perfect overall engine design with unique Cummins EFC system, high precision on control and quick response time.

康明斯火力发电用热车机升效率高: 全局规划紧密.外貌部置节省，正常运行平缓。High lift power: Integrated and compact design, reasonable layout and smooth operation.

电喷形号 QSNT. QSK19. QSK38. QSK50考虑中国大非路段3.过程及亚洲Tier2. Tier 3排出条例符合要求。

Electric fuel injection engines (QSNT,QSK19,QSK38,QSK50) meet the Tier3 emission regulations for China non-road vehicles and Tier2 & Tier3 emission regulations of North America.

零备用件都有机会得到性好， 热车机运转及维修养生保健体验，费用低。Good availbility of spare parts, smooth engine operation, convenient engine maintenance and low cost.

发动机规格Engine Specifications

电功率範圍 Power Range   224-310KW连接结构 Type   直列/六缸/四冲程/四气门  In-ine/6-Cylinder/4-Stroke/4-Valve缸径x冲程 BoreX Stroke  125X 147mm排量 Displacement   11L外观形状尺寸图 Dimension  长X宽X高(LXWX H) 1360 x 833X 1068 mm净水平 Dry Weight   940kg

224-310KW康明斯生产发电用发起机的的特点：面积小， 解压缩比低， 防雨百叶窗新鲜空气煮沸，更能初始化，电信车载式电源适配器的首推。Compact size, high compression ratio, gile heated by air, easy for start-up, the first option of mobile vehicle power supply.

推荐机型Engine Models Recommended

打着机型号查询	选用最大功率(kW)Prime Power	预备输出功率kW)Standby Power
MTA11-G2	224	246
MTAA11-G3	282	310
